Sizing and scaling your Cloud Native Compiler installation

Scaling Overview

Scaling CNC is controlled by two factors:

A critical metric to measure whether your CNC service is responding to compilation requests in time is the Time to Clear Optimization Backlog (TCOB). When you start a Java program, there is a burst of compilation activity as a large amount of optimization requests are put on the compilation queue. Eventually, the compiler catches up with the optimization backlog and all new compilation requests are started within 2 seconds of being put on the compilation queue. The TCOB is the measurement, for each individual JVM, of how long it took from the start of the compilation activity to when the optimization backlog is cleared.

To find the right amount of CNC vCores to provision for a job, first determine an acceptable TCOB for your application. Different applications will find different TCOBs acceptable depending on how many optimizations the program requests and how quickly you need to warm it up. As a starting point, set the amount of time you want to wait before the application is ready to accept requests as your target TCOB.

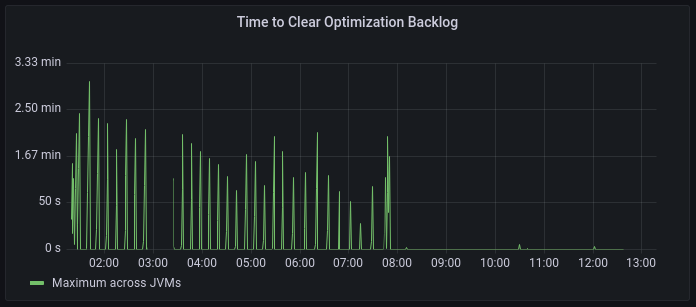

Perform a test run of a single JVM against your CNC service. In Grafana, check the Time to Clear Optimization Backlog and Compilations in Progress graphs.

You should also check the client JVM logs to see whether the JVM fell back to using local compilation. JVMs switch to local compilation when the CNC service becomes unresponsive or tells the JVM that it cannot handle any new requests.

Configuring CNC Service Capacity

Depending on your autoscaling settings, there are three variables you will need to set:


$ simpleSizing:
$   vCores: 29
$   minVCores: 29
$   maxVCores: 92

Configuring Autoscaling

Since the Cloud Native Compiler (CNC) service uses a large amount of resources, it is imperative to correctly configure autoscaling. Kubernetes Horizontal Pod Autoscaler (HPA) automatically increases/decreases the number of pods in a replication controller, deployment, replica set or stateful set based on observed CPU utilization.

Autoscaling is enabled by default in the Helm chart. To disable autoscaling, add the following to values-override.yaml:


$ autoscaler: false

If you use the Azul-provided cluster config file, the pre-defined node groups for the gateway, compile-broker and cache components already contain instructions to work with Autoscaler. If the Autoscaler Node sees any unused nodes, it deletes them. If a replication controller, deployment, or replica set tries to start a container and cannot do it due to lack of resources, the Autoscaler Node knows which service is needed and adds this service to the Kubernetes cluster. For more information, see https://kubernetes.io/docs/tasks/run-application/horizontal-pod-autoscale/.

In order to use HPA autoscaling, you need install the Metrics Server component in Kubernetes.

Manually Scaling Up Compile Broker and Cache Replicas

To see how many replicas of Compile Broker and Cache are currently running, run the following command:


$ kubectl -n compiler get deployment/compile-broker statefulset/cache

$ NAME                             READY   UP-TO-DATE   AVAILABLE   AGE
$ deployment.apps/compile-broker   1/1     1            1           21d

$ NAME                             READY   AGE
$ statefulset.apps/cache           1/1     21d

To change the number of replicas, change the sizing values in the simpleSizing section and run the following command:


$ helm upgrade compiler cnc-helm/prime-cnc -n compiler -f values-override.yaml

Wait for all pods to be in running state and make sure the gateway is responsive before launching compilation requests against the CNC service.
