Installing Optimizer Hub on MicroK8s

Table of Contents

Installing MicroK8s
Installing Optimizer Hub
Upgrade Optimizer Hub on MicroK8s
Uninstalling Optimizer Hub from MicroK8s

Need help?

Schedule a consultation with an Azul performance expert.

MicroK8s can be used for testing, evaluating, and non-cloud-managed blob storage use of Optimizer Hub.

Make sure your MicroK8s meets the 18 vCore minimum for running Optimizer Hub. Although MicroK8s can run on multiple platforms, Optimizer Hub is only available for the x64 platform, so not on macOS with M-processor.

Installing MicroK8s

Install MicroK8s for your platform following this installation guide.

Install MicroK8s on Linux with Snap:
```
 sudo snap install microk8s --classic
```

Check the status while Kubernetes starts:

 $ microk8s status --wait-ready
microk8s is running
high-availability: no
  datastore master nodes: 127.0.0.1:19001
  datastore standby nodes: none

Turn on the services you need, in our case, only dashboard:
```
 microk8s enable dashboard
```

Access the Kubernetes dashboard:

 $ microk8s dashboard-proxy

Checking if Dashboard is running.
Infer repository core for addon dashboard
Waiting for Dashboard to come up.
Trying to get token from microk8s-dashboard-token
Waiting for secret token (attempt 0)
Dashboard will be available at https://127.0.0.1:10443
Use the following token to login:
eyJhbGciOiJSUzI1NiIs...

You can now open the dashboard in the browser, using the token you got in the previous step.

Installing Optimizer Hub

Optimizer Hub uses Helm as the deployment manifest package manager. There is no need to manually edit any Kubernetes deployment manifests.

Make sure your Helm version is v3.8.0 or newer, check it with helm version.

Add the Azul Helm repository to your Helm environment:

 microk8s helm repo add opthub-helm https://azulsystems.github.io/opthub-helm-charts/
microk8s helm repo update

Create a namespace (i.e. my-opthub) for Optimizer Hub.
```
 microk8s kubectl create namespace my-opthub
```
Clone or download the files from the GitHub opthub-helm-charts repository.
```
 git clone https://github.com/AzulSystems/opthub-helm-charts.git
```
Create a directory for your configuration files
```
 mkdir ~/my-opthub/
```

Create MinIO storage:

Copy minio-dev.yaml and replace minio-dev with my-opthub or the namespace you created in the previous step.

 cp ~/opthub-helm-charts/minio-dev.yaml ~/my-opthub/minio-dev.yaml
sed -i 's/minio-dev/my-opthub/g' ~/my-opthub/minio-dev.yaml
# `-i` modifies the original file
# `s/old/new/g`: s = substitute, g = all occurrences

Copy minio-setup-job.yaml and again replace minio-dev.

 cp ~/opthub-helm-charts/minio-setup-job.yaml ~/my-opthub/minio-setup-job.yaml
sed -i 's/minio-dev/my-opthub/g' ~/my-opthub/minio-setup-job.yaml

Install the S3 compatible storage with:

 microk8s kubectl apply -f ~/my-opthub/minio-dev.yaml -f ~/my-opthub/minio-setup-job.yaml

Create a configuration file values-minikube.yaml, based on the example file, to disable all resource definitions.
```
 cp ~/opthub-helm-charts/values-minikube.yaml ~/my-opthub/values-minikube.yaml
```
Install using Helm, passing in the values-minikube.yaml. In case you don’t want to install the full Optimizer Hub, but only a part of the services, first check "Configuring the Active Optimizer Hub Services".
```
 microk8s helm install opthub opthub-helm/azul-opthub -n my-opthub -f ~/my-opthub/values-minikube.yaml
```
The command should produce output similar to this:
```
 NAME: opthub
LAST DEPLOYED: Tue Jun 17 16:52:18 2025
NAMESPACE: my-opthub
STATUS: deployed
REVISION: 1
TEST SUITE: None
```

Verify that all started pods are ready:

 $ microk8s kubectl get all -n my-opthub

NAME                                  READY   STATUS      RESTARTS   AGE
pod/cache-0                           1/1     Running     0          2m58s
pod/compile-broker-59b99b66d6-njmwg   1/1     Running     0          2m58s
pod/gateway-8445f9d959-zvp5f          1/1     Running     0          2m58s
pod/gw-proxy-6c7b66bb6f-t4675         1/1     Running     0          2m58s
pod/minio                             1/1     Running     0          3m42s
pod/minio-setup-job-hqpw7             0/1     Completed   1          3m42s

NAME                       TYPE           CLUSTER-IP       EXTERNAL-IP   PORT(S)             AGE
service/cache              ClusterIP      None             <none>        5701/TCP            2m58s
service/compile-broker     ClusterIP      10.152.183.188   <none>        50051/TCP           2m58s
service/gateway            LoadBalancer   10.152.183.250   <pending>     50051:31401/TCP     2m58s
service/gateway-headless   ClusterIP      None             <none>        50051/TCP           2m58s
service/minio              ClusterIP      10.152.183.157   <none>        9000/TCP,9090/TCP   3m42s

NAME                             READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/compile-broker   1/1     1            1           2m58s
deployment.apps/gateway          1/1     1            1           2m58s
deployment.apps/gw-proxy         1/1     1            1           2m58s

NAME                                        DESIRED   CURRENT   READY   AGE
replicaset.apps/compile-broker-59b99b66d6   1         1         1       2m58s
replicaset.apps/gateway-8445f9d959          1         1         1       2m58s
replicaset.apps/gw-proxy-6c7b66bb6f         1         1         1       2m58s

NAME                     READY   AGE
statefulset.apps/cache   1/1     2m58s

NAME                        STATUS     COMPLETIONS   DURATION   AGE
job.batch/minio-setup-job   Complete   1/1           12s        3m42s

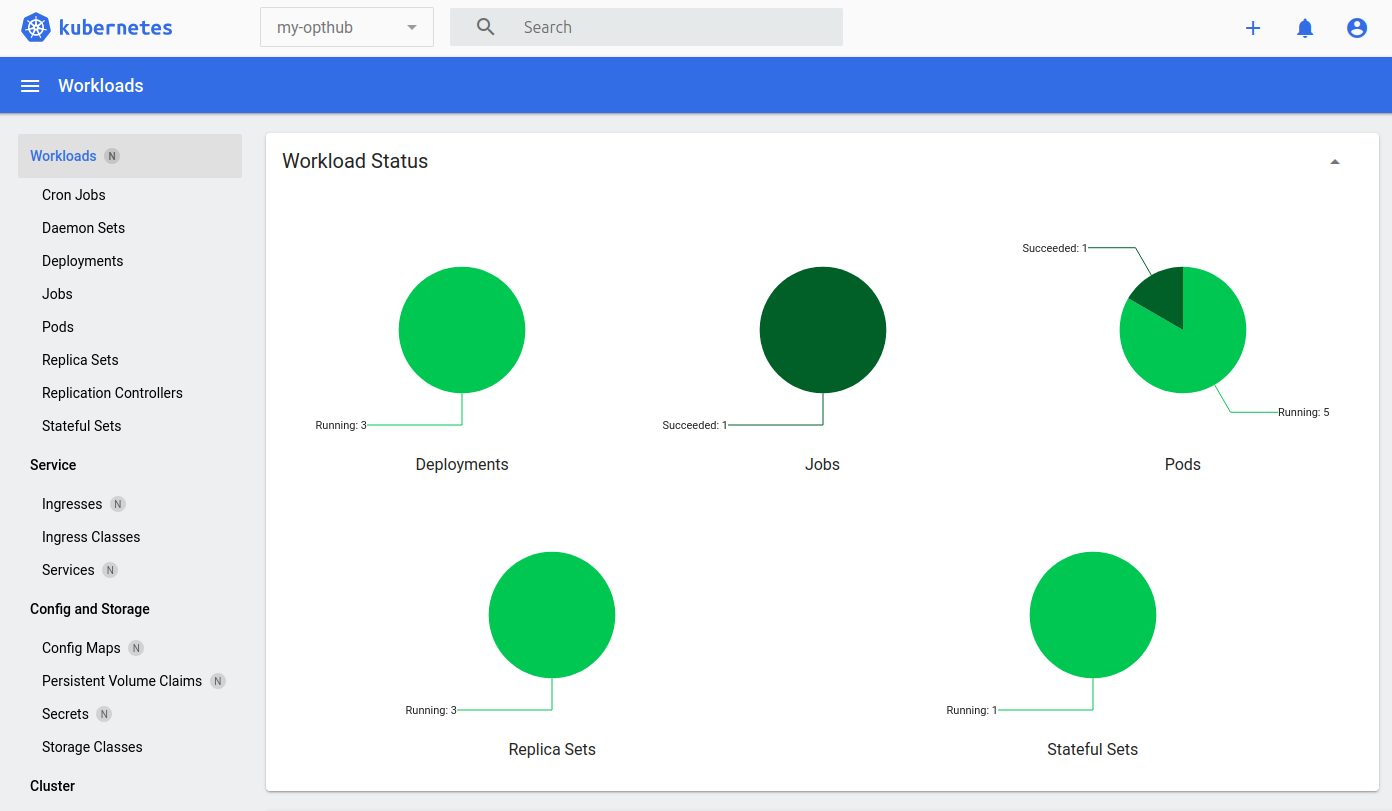

You can also verify the status on the dashboard we opened before, by selecting the my-opthub namespace in the header:

Upgrade Optimizer Hub on MicroK8s

You can upgrade your Optimizer Hub instance running on MicroK8s, and keep all profile data and compile caches as the S3 compatible minio storage won’t be upgraded.

List the currently installed version:

 $ microk8s helm list --namespace my-opthub
NAME  	NAMESPACE	REVISION	UPDATED                                	STATUS  	CHART            	APP VERSION
opthub	my-opthub	1       	2025-06-17 16:59:26.33115804 +0200 CEST	deployed	azul-opthub-1.11.2	1.11.2

List the available versions on the helm repo:

 $ microk8s helm repo update
$ microk8s helm search repo opthub-helm --versions
NAME                   	CHART VERSION	APP VERSION	DESCRIPTION
opthub-helm/azul-opthub	1.11.2       	1.11.2     	Azul Intelligence Cloud: Optimizer Hub
opthub-helm/azul-opthub	1.11.1       	1.11.1     	Azul Intelligence Cloud: Optimizer Hub
opthub-helm/azul-opthub	1.11.0       	1.11.0     	Azul Intelligence Cloud: Optimizer Hub
opthub-helm/azul-opthub	1.10.2       	1.10.2     	Azul Intelligence Cloud: Optimizer Hub
opthub-helm/azul-opthub	1.10.1       	1.10.1     	Azul Intelligence Cloud: Optimizer Hub
opthub-helm/azul-opthub	1.10.0       	1.10.0     	Azul Intelligence Cloud: Optimizer Hub
opthub-helm/azul-opthub	1.9.5        	1.9.5      	Azul Intelligence Cloud: Optimizer Hub
...

Upgrade and use the same settings and files from the installation, just by replacing install with upgrade:
```
 microk8s helm upgrade opthub opthub-helm/azul-opthub -n my-opthub -f ~/my-opthub/values-minikube.yaml
```
Note
To upgrade or downgrade to a specific version, add --version <version>.
After upgrading, verify the version with the helm list command again.

You can check the version of the MinIO storage with this command:

 $ microk8s kubectl exec -n my-opthub pod/minio -- minio --version
minio version RELEASE.2024-12-18T13-15-44Z (commit-id=16f8cf1c52f0a77eeb8f7565aaf7f7df12454583)

Uninstalling Optimizer Hub from MicroK8s

Optimizer Hub can be removed from minikube using helm, after which the namespace can also be deleted.

 microk8s helm uninstall opthub -n my-opthub
microk8s kubectl delete namespace my-opthub
microk8s helm repo remove opthub-helm
